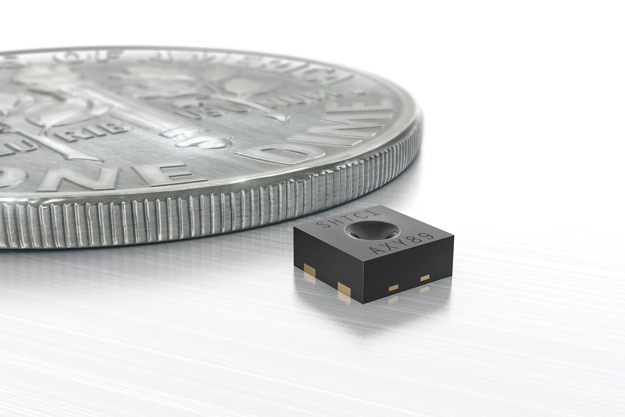

Really miniature dimensions and a low price are main benefits of new calibrated sensors SHTC1 from production of company Sensirion. If you ever tried well known sensors series SHT2x, probably you´ve been surprised by their small dimensions (3,2x3,2x2mm). However the new sensor SHTC1 shifts dimensions a level further, or better said - lower. The result is a DFN package with dimensions of only 2x2x0.75mm, what in praxis represents a package, which you may not notice at a cursory look at a populated PCB. That´s why the SHTC1 is primarily intended for mobile applications and everywhere, where a spared space and a minimal power consumption are beneficial.
Taking a low price in mind, the guaranteed accuracy of SHTC1 chip is relatively excellent, roughly on a level of SHT21. Typical accuracy of ±3% in a range of 20-80% RH and ±0.3°C is probably fully sufficient for majority of applications. 1.8 V supply voltage and ultra low power consumption below 1uJ/measurement are ideal for battery powered devices. SHTC1 supports I2C fast mode (0-400 kHz). This small package practically can´t be soldered by hand, but it is relatively easily possible by means of a solder paste and a hot-air soldering station.
Also the SHTC1 is produced by a well proven CMOSens technology, which proves its reliability and a long-term stability in industry. Similarly, the SHTC1 also isn´t only a “sensor” but a ready-made calibrated solution containing 2x sensor, low-noise amplifier, A/D interface, data processing unit with calibration data in a ROM and a communication interface.
Detailed information can be found in the Sensirion SHTC1 datasheet and the Sensirion Humidity flyer.
If you´re interested in trying this perspective sensor, take part in a contest below the article, or contact us on a well known address sales@soselectronic.com.
SHTC1 we keep so far as an item upon order and soon it will be a standard stock item.
- ultra miniature calibrated temperature and humidity sensor
- excellent price / performance ratio
- extremely compact dimensions (2 x 2 x 0,75 mm), DFN package
- typical accuracy +-3% RH and +-0,3°C
- digital output with an I2C interface (0-400 kHz)
- excellent reliability and a long-term stability
- 10-years industry proven technology
- extremely low power consumption, below 1uJ / measurement
- high immunity against external disturbances (EMI/EMC)
