Bolymin BEGV have a sufficient power to control your applications

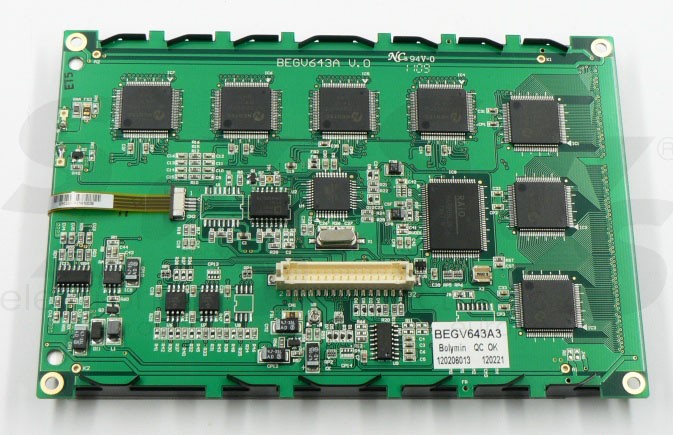

Based on the ATMega644P AVR processor, provide BEGV643 and BEGV641 a relatively high performance at a low power consumption. Used AVR processor provides a higher power than necessary to control the display and module peripherials, that´s why you have a considerable amount of CPU power/ system resources freely available according to your application demands.

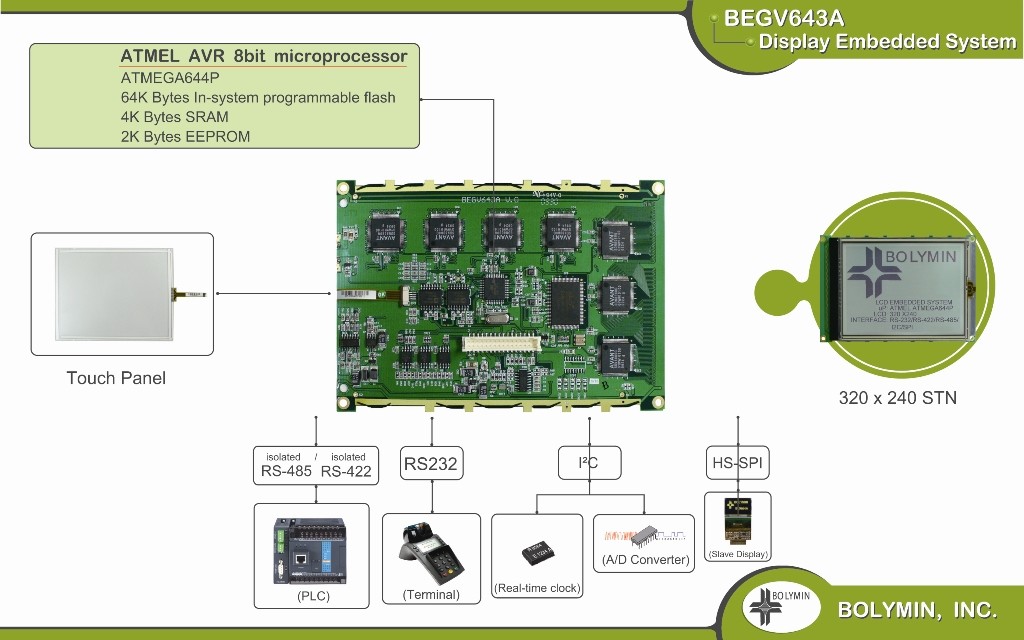

Modules contain 1x RS232, one isolated RS485/422/232 port and a high speed SPI/I2C interface. In comparison to development from single components, when using these modules, it is eliminated the need for design of schematics and PCB of a control unit, display unit and a communication interface, power supply part as well as a necessary software. With a built-in in-system programmable 64kB Flash and 4kB SRAM, they provide a decent memory space even for relatively large applications. Another memory space is provided by external 2x 64 kB I2C CMOS EEPROM. Monochrome STN LCD displays with a white backlight provide a very good legibility. BEGV643 has the 320x240 px display resolution and BEGV641 has 240x128 px.

Modules are available in few versions of communication interfaces, detailed information will provide you BEGV643 / BEGV641 flyers and BEGV643 a BEGV641 user manuals. On the page 61/62 of user manuals you can also find links to download software utilities for display and communication interfaces. For a development support there is also available the BEGV643AMGI board with ISP and RS232 connectors.

In case of interest about any Bolymin product, please contact us at info@soselectronic.com.
