Add the 4-th dimension to your Raspberry Pi

Graphic output is always beneficial, enabling to use embedded microcomputer as a user interface (HMI) or at least to display various variables etc. There are many ways to reach it, but probably the most desirable solution would be to connect a display and nothing to solve.

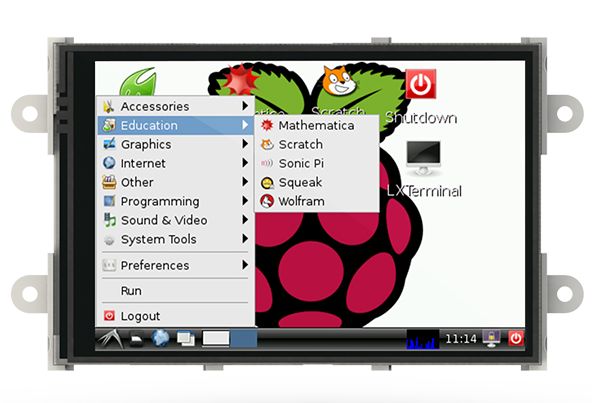

New graphic modules 4DPi-32 and 4DPi-35 belong right to this group of ideal solutions, as they´re directly designed for Raspberry Pi (A,B, B+) - electrically and mechanically, while the I/O connector remains still available.

Simplicity of usage is empowered by a fact, that they don´t require (external) power supply, as they´re powered from the computer itself. Communication is done through a high speed 48 MHz SPI connection. Speed of a built-in processor enables displaying of pictures and videos with up 25 fps speed (even more if images can be compressed). Resistive touch panel enables operation of the whole system without a mouse.

As for the size, there´s only a small difference between 4DPi-32 a 4DPi-35 modules - the biggest difference is in resolution 480 x 320 px (4DPI-35) vs. 320x240 px (4Dpi-32). Both displays display GUI (primary) output of the Raspberry Pi - the same as if we had a monitor connected.

These novelties are already our stable stock item. Detailed information will provide you the 4DPi-32 and 4DPi-35 datasheets.
In case of interest in any 4D Systems product, please contact us at sales@soselectronic.com.
