Four new series, which can be found in our portfolio are:
• PTPM - (PTPM-x/x-P-2,5) a miniature, only 5mm high wire-to-board connector, consisting of 2 parts (socket + header). PTPM connects wires without stripping an insulation (IDC). It is ideal for Ethernet cables and other wires of 0.14/0.34 mm2 (AWG 22-26) diameter - depending on a type. Maximum current 2-4A/160V, 2.5 mm pitch. Number of poles is always even (2-4-6-8-10).
• PTSM - a connector similar to PTPM series, but the cable termination is screwless (push-in) via a spring contact. That enables to use up to 0,75 mm2 conductors - solid but also stranded wires.
• PTSM - (PTSM -x/x-2,5-H, resp PTSM-x/x-2,5-V) terminals for a direct connection of wire conductors to a PCB (THT and SMT version).

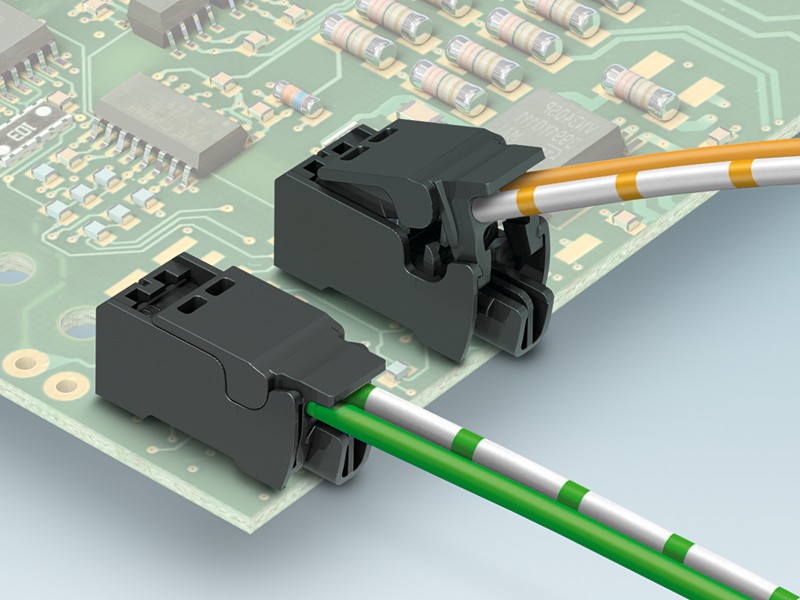

• PTQ - IDC wire-to-board connector for extremely simple connection of wires to a PCB. All that is necessary is to push in an Ethernet cable or other 0.14/0.34 mm2 cable and to close the lever (upper portion of the connector - without stripping an insulation, without cutting and without any tools. No tools are necessary even to release the wire - only open the actuation lever. Maximum current up to 4A/160V, 2.5 mm pitch, 8mm height.
Detailed description will provide you the overview of Phoenix PTSM and PTPM and Phoenix PTQ series, as well as datasheets at particular types. Many versions can be found directly in our stock, in case of interest in non-stock types, please contact us at sales@soselectronic.com.
Miniature easily applicable PCB connectors from Phoenix Contact
- universal PCB connectors
- miniature dimensions
- extremely simple usage
- the way of usage significantly decreases error rate at connecting of cables
- 2-8 poles (PTPM up to 10 poles)
- suitable for Ethernet (CAT5e), mixed-signal, power supply and other
- usage up to 2-6A/160V (depending on a type)
- SMD and also HT versions
- horizontal and vertical versions
